Specifications for Visionscape GigE Software
MINIMUM PC REQUIREMENTS:
• Intel® Core™2 Duo Processor
• Internet Explorer 7 or higher
• 2GB RAM/128MB Video RAM (Windows 7); 1GB/128MB Video RAM (XP)
• 750MB hard drive space
• 16-bit color display
• 3.0 Windows Experience Index
• 1 USB port and 1 Network port
• Open PCIe slot for digital I/O card (if required)
• Built-in GigE network card or open slot for GigE network interface card

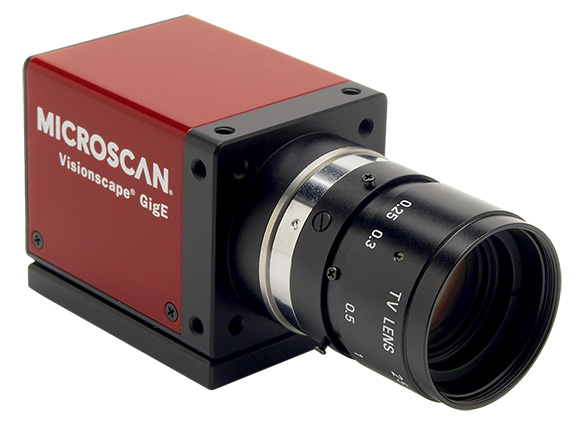

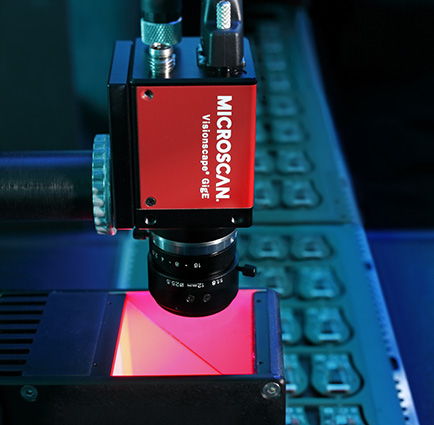

Specifications for Visionscape GigE Camera
(Note: Dimensions and specifications represent the most common camera models.)
Mechanical (CCD)
Height: 1.42" (36 mm)
Width: 1.42" (36 mm)
Depth: 1.88" (47.8 mm)
Weight: ≤ 3.17 oz. (90 g)
Mechanical (CMOS)
Height: 1.42" (36 mm)
Width: 1.42" (36 mm)
Depth: 1.70" (43.1 mm)
Weight: ≤ 3.17 oz. (90 g)
Communication Protocols
Interfaces: Gigabit Ethernet
Light Collection
Progressive scan, full frame and partial frame
Symbology Types
2D Symbologies: Data Matrix, PDF417, QR Code
Linear Barcodes: Code 39, Code 93, Code 128, UPC/EAN, UPC-E, UPC Supplementals, I2 of 5, BC412, Codabar, Postnet, Pharmacode, GS1 Databar and Composite
